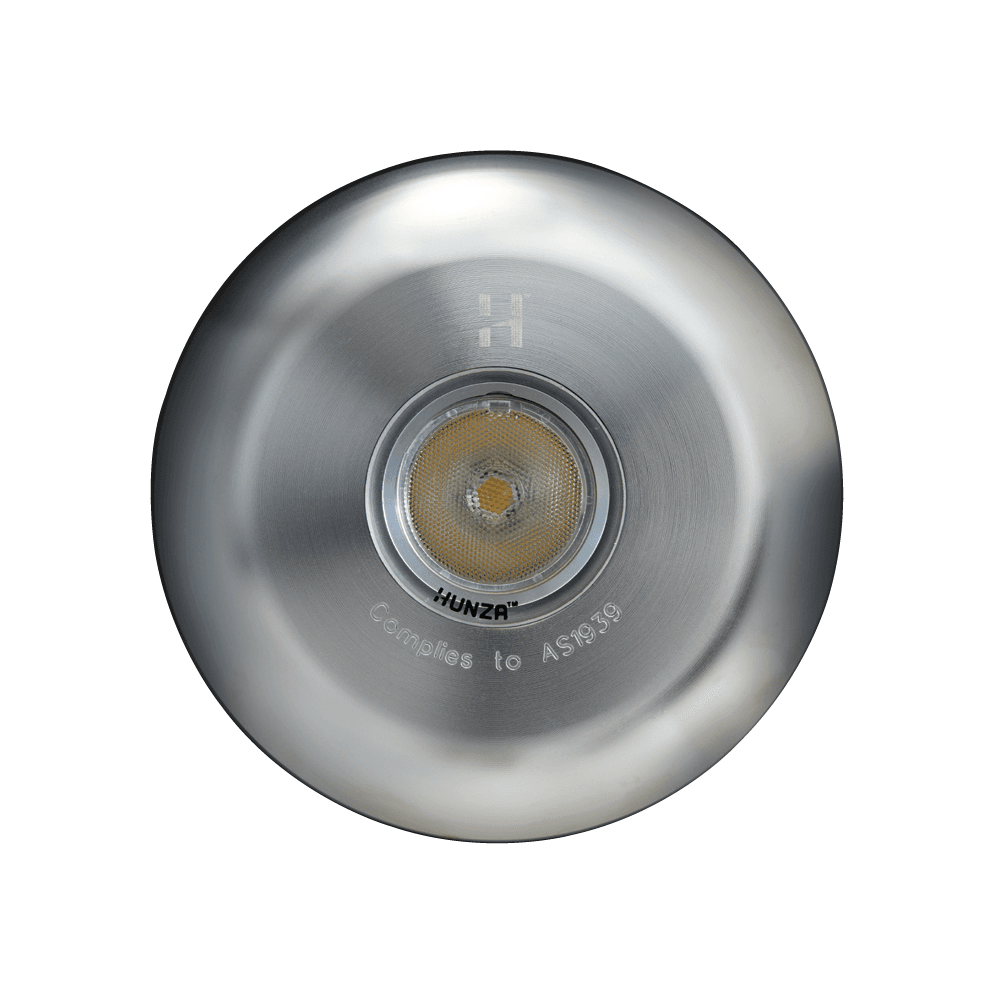

Hunza Pure LED Pool Light D10 - Stainless Steel - Low Voltage

SKU: POOL/S/D10/SS 15 27 CL

The Hunza PureLED Pool Light is an underwater luminaire designed for recessed installation in swimming pools.

Although supplied with a 12V integral driver/convertor, this fitting requires a remote transformer and installation in Parallel.

This luminaire is fully submersible up to 9m and tested to an IP68 water protection rating.

The luminaire is held in the PVC canister by two "O" rings. There are no mounting screws in the flange to spoil the aesthetics of this luminaire.

Up to 600mm (2 ft) of cable can be coiled up inside the mounting canister, enabling the luminaire to be removed for lamp changing above the water line.

This luminaire is supplied with a PVC canister.

WARNING - out of balance pool chemicals may cause the luminaire to corrode at a rapid rate. In salt water an increase in water temperature of 10º will double the corrosion factor. 316 stainless steel is suitable for situations of up to 1000 parts per million of chloride. Where an automatic chlorinator is employed an excess amount of chlorine may be produced. The Hunza PureLED Pool Light is electro polished to increase corrosion protection.

Hunza PureLED has an integrated LED chip and the parts are serviceable.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Finish & Lamp Temperature:

Finish & Lamp Temperature

Beam:

Beam

Lens:

Lens

Please Enquire For Availability

Specifications

Beam Angle
15º25º38º60º
Bulb / Light Source
Cree XHP-50-2 Plug and Play field replaceable LED board
Colour Temperature
2700K3000K4000K
CRI
90+ (3000K)
Dimmability
Yes, With A Suitable Transformer
Forward Voltage
6vF
IP Rating
IP68 - submersible up to 9m
Material
Stainless Steel & Aluminium
Type of Driver
Low Voltage - Requires Transformer
Type of Wiring
Parallel
Warranty
Electronics warranty 5 years / Body warranty 5 years for stainless steel
Wattage and Lumen
600 Lumens @ 1050mA (6 watts)
